NOCTUA 200
Designed for dismounted Soldiers
Very light ISR UAV dedicated to IMINT/SIGINT missions for armies and special forces
2.65 m
Wingspan
3 kg
MTOW
30 km
Range
Up to 2 h
Autonomy
Visual & Acoustic stealth
Thanks to its grey colour and low acoustic signature, the Noctua 200 is ideal for stealthy, discreet missions, while maintaining its high performance
Very light logistic footprint
Discover the simplicity of transport with a lightweight, compact drone that can be deployed from a rucksack or very light case.
High precision belly landing
Thanks to our landing beacon, you can ensure that your drone lands automaticaly exactly where you want, every time.
Hand launched
Designed for field operations, the UAS is easy to launch by hand, enabling immediate flight without the need for a landing strip or specialist equipment.
This makes it highly responsive, ideal for rapid intervention in confined or hard-to-reach areas, while guaranteeing operator safety thanks to its ergonomic design and optimised centring.
Belly landing
Designed to resist the most extreme terrain conditions, the UAS uses a belly landing system that effectively distributes the impact over a reinforced surface. This landing mode protects sensitive components such as the sensors, camera and avionics, while guaranteeing optimum stability on the ground.
Modular payload capability
Easily adapt your payload to suit your mission

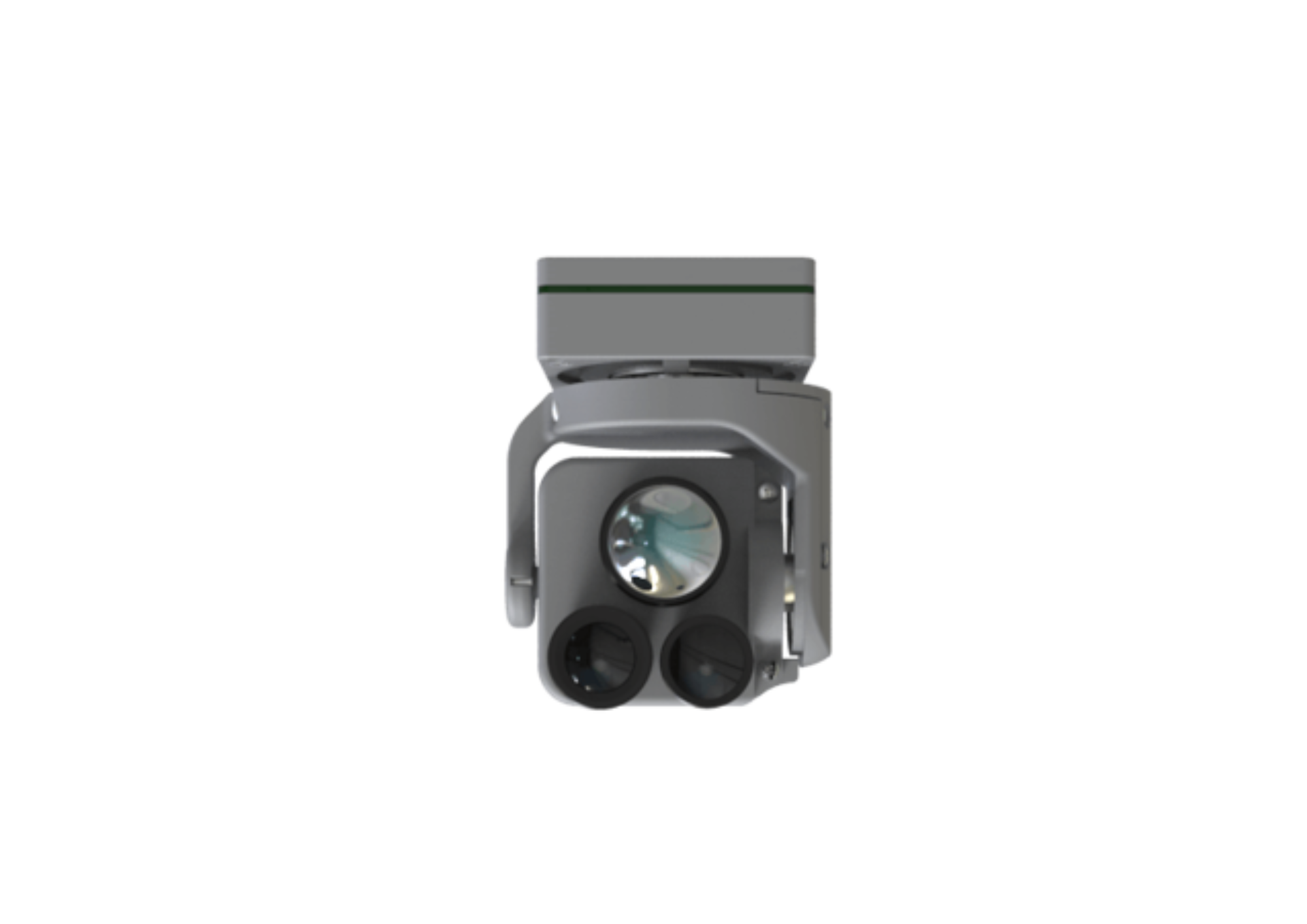

Gyrostabilized EO/IR camera
DragonEye2
Dual EO-IR stabilized camera with a mere lightweight with long range observation capability.
HD EO/IR
Tactical mapping
ADTi 24MP 24S V3 Surveyor Lite
Advances in sensor technology are progressing at a rapid pace. That is why we have adopted one of the most innovative solutions available, guaranteeing reliable data and maximum efficiency.
Our ground segment includes
Rugged ground station with user-friendly C2 MMI
Secured data link between the UAV and the ground station
Guidance beacon for automatic landing
Tactical casing
Our data link is designed and manufactured in-house
The radio communciation is an essential part of the system.
The radio communication is the link between the UAV and the user. It includes a tracking antenna mounted on the ligh-weight mast, communication system software.
Our radio communications system provides two functions: Command and control link, and a video data link.
Command and control software
Aerostation is our in-house command and control software. It automatically monitors all flight parameters and ensures flight safety at all times. Once you’ve planned your mission with Aeroplanner (mission preparation software).
Aerostation lets you simulate, fly and even replay your missions.
Avionics configuration
Equipped with high-performance avionics for high-precision, reliable aerial missions
Technical specifications and datasheet
MTOW / Max payload weight
3 kg / 0.5 kg
Cruise airspeed
60 km/h
Max wind
35 km/h
Max altitude
> 3000 m
Temperature
-10°C to + 50°C
Wingspan
2.65 m
Hours
Up to 2 h
Range
30 km
Deployment time
5 min
Casing size
143 cm x 42 cm x 33 cm 18 kg
