GRIZZLY 400
Designed for harsh environments
Rugged UAV with modular bay, including IMINT and SIGINT payloads and dropping capabilities, dedicated to long range ISR and special missions
4.4 m
Wingspan
~15 kg
MTOW
50 km
Range
Up to 4 h
Autonomy
Dual payload & Airdrop capability
Equipped with a modular bay for easy configuration changes and dual payload, offering optimal flexibility mapping, ISR and airdrops missions.
High robustness
This drone is designed for the harshest environments, offering unrivalled reliability and performance, even in the most complex conditions.
High precision belly landing
Thanks to our landing beacon, you can ensure that your drone lands automaticaly exactly where you want, every time.
Catapult launched
The UAV is launched using a lightweight catapult specially designed for mobile operations. Easily transportable and quick to deploy, it enables the drone to take off in just a few minutes, without any ground infrastructure. Its mechanism ensures gradual, controlled acceleration, guaranteeing a stable take-off, even in difficult conditions.
Belly landing
Designed to resist the most extreme terrain conditions, the UAS uses a belly landing system that effectively distributes the impact over a reinforced surface. This landing mode protects sensitive components such as the sensors, camera and avionics, while guaranteeing optimum stability on the ground.
Dual payload capability
Choose and swap easily between one or more payloads for total flexibility on your missions.

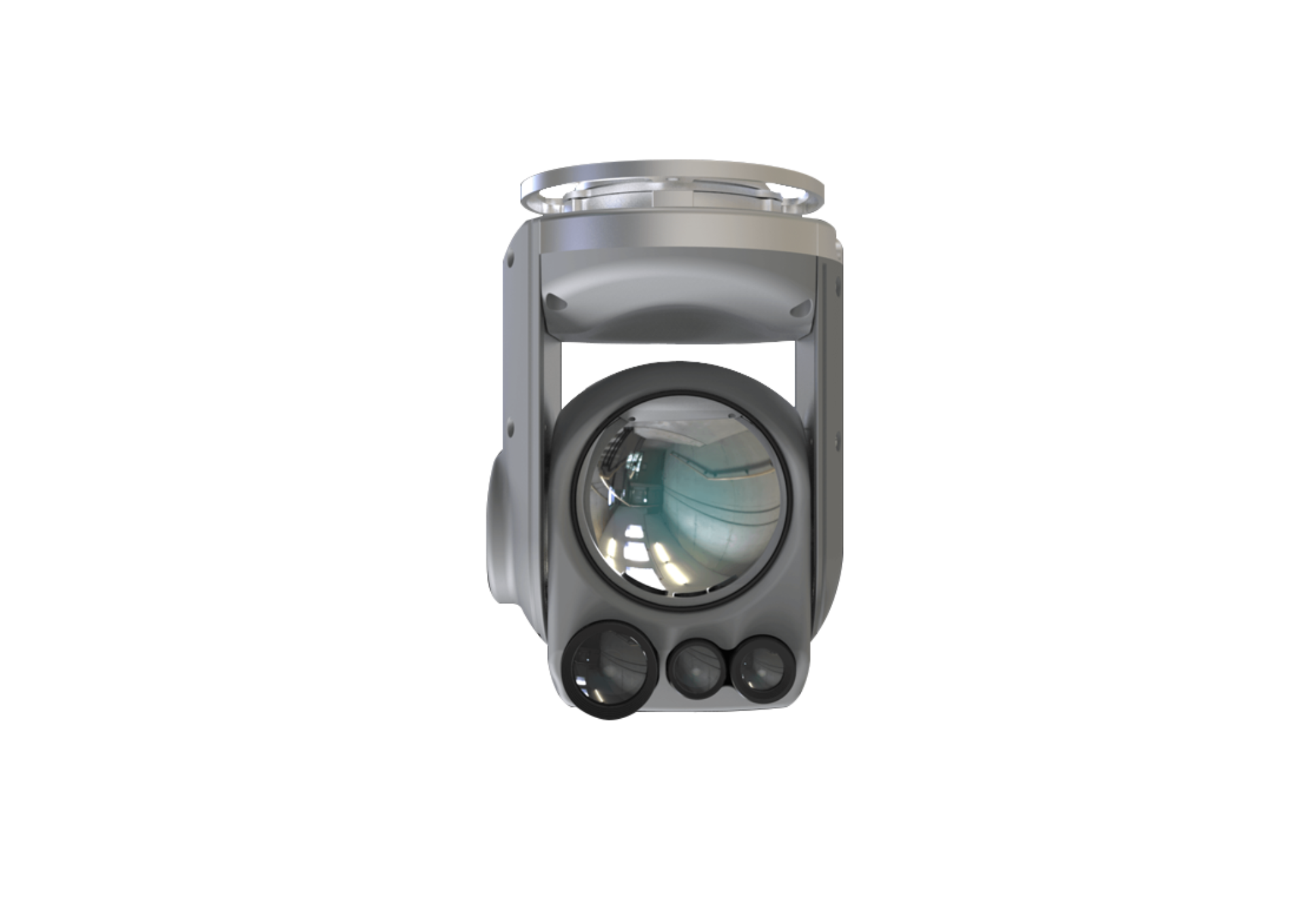

Gyrostabilized EO/IR camera
Raptor
A light-weight long-range dual EO-IR stabilized camera turret.
Featuring a significant IR range and a X80 EO zoom.
HD EO/IR

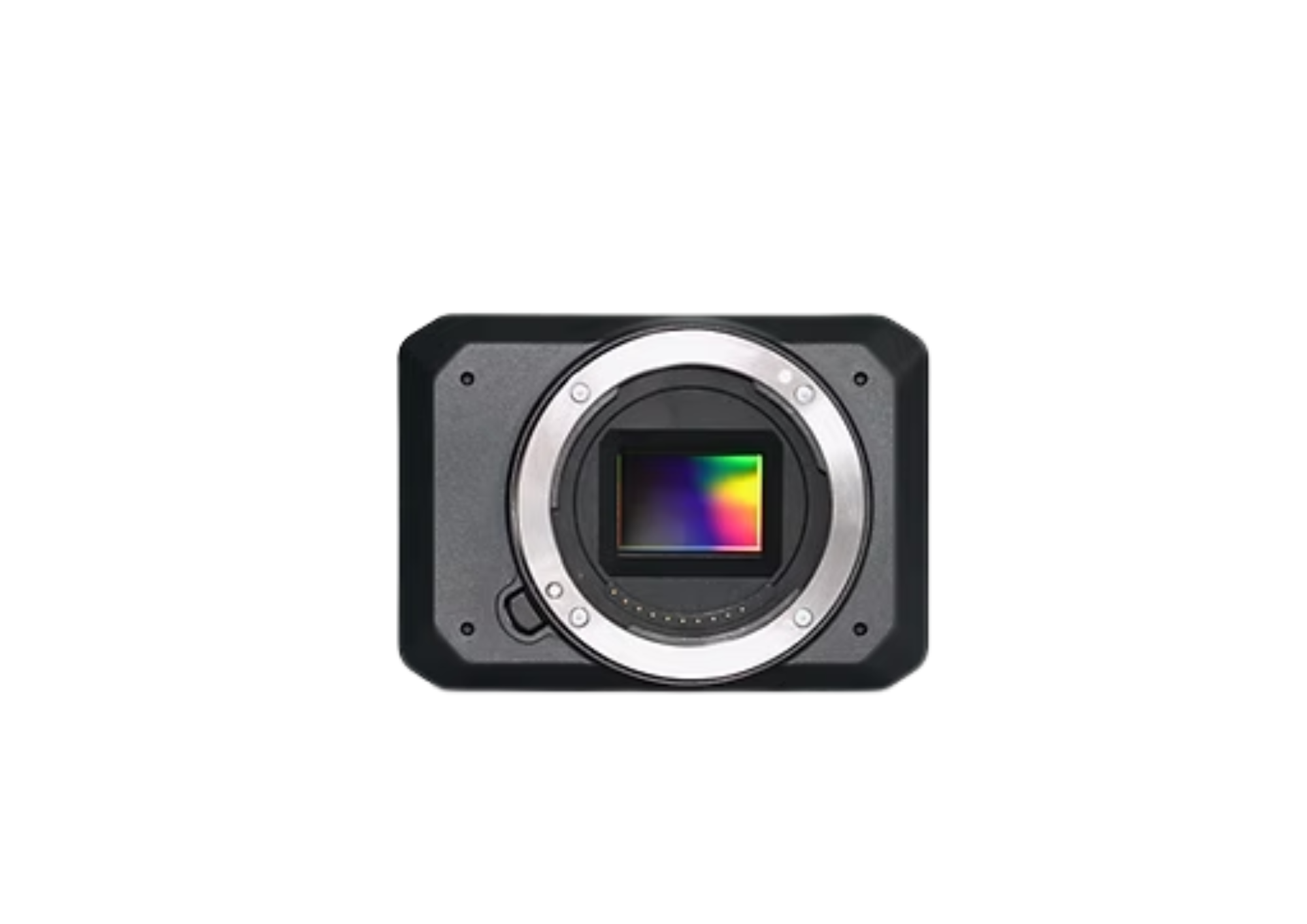

Tactical mapping
ADTi 24MP 24S V3 Surveyor Lite
Advances in sensor technology are progressing at a rapid pace. That is why we have adopted one of the most innovative solutions available, guaranteeing reliable data and maximum efficiency.
IMSI catcher
Vortex XS
The Vortex XS is an IMSI and WiFi catcher solution for detecting, capturing and geolocating 3GPP and WiFi mobile terminals.
Using it with SIGINT payload, the performances of the VORTEX XS maximise the capability to detect and identify targets.
Our ground segment includes
Rugged ground station with user-friendly C2 MMI
Secured data link between the UAV and the ground station
Guidance beacon for automatic landing
Tactical casing
Our data link is designed and manufactured in-house
The radio communciation is an essential part of the system.
The radio communication is the link between the UAV and the user. It includes a tracking antenna mounted on the ligh-weight mast, communication system software.
Our radio communications system provides two functions: Command and control link, and a video data link.
Command and control software
Aerostation is our in-house command and control software. It automatically monitors all flight parameters and ensures flight safety at all times. Once you’ve planned your mission with Aeroplanner (mission preparation software).
Aerostation lets you simulate, fly and even replay your missions.
Customisable avionics configuration
Choose between two high-performance avionics for high-precision, reliable aerial missions
Technical specifications and datasheet
MTOW / Max payload weight
~15 kg / 2.8 kg
Cruise airspeed
70 km/h
Max wind
45 km/h
Max altitude
> 3000 m
Temperature
-10°C to + 50°C
Wingspan
4.35 m
Hours
Up to 4 h
Range
50 km
Deployment time
<10 min
Casing size
127 cm x 580 cm x 765 cm 50 kg
